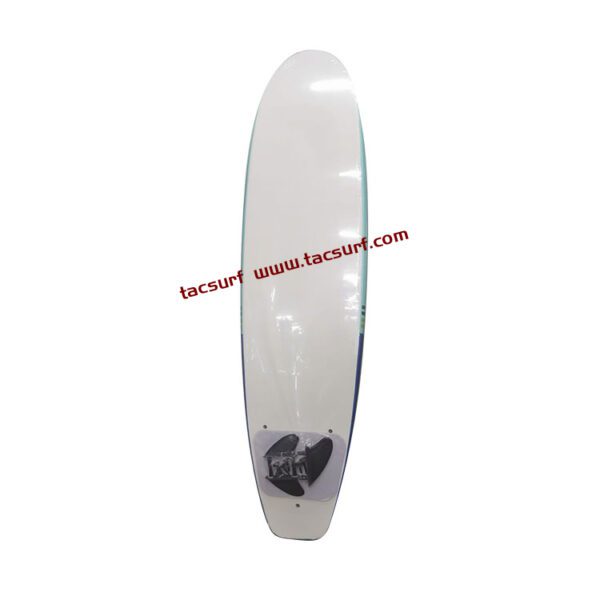

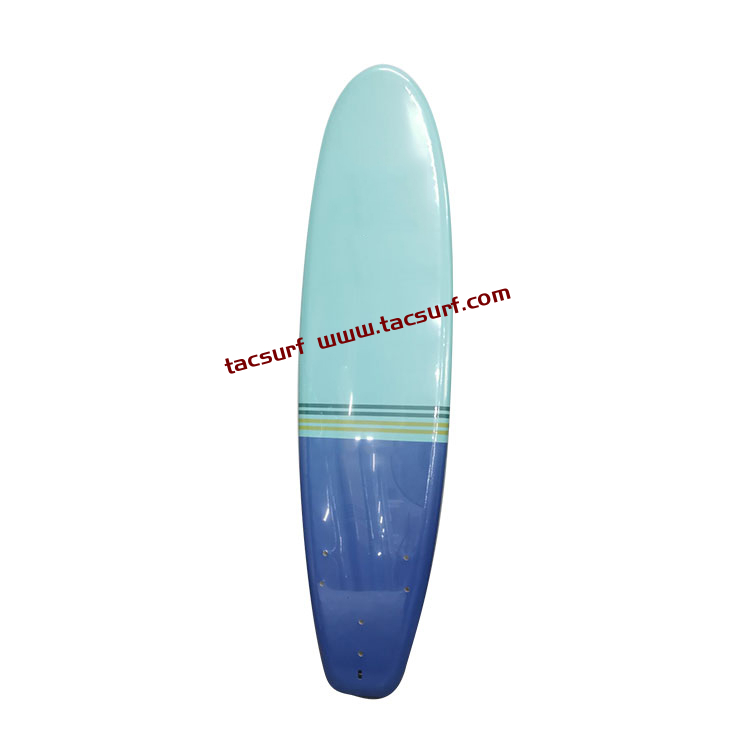

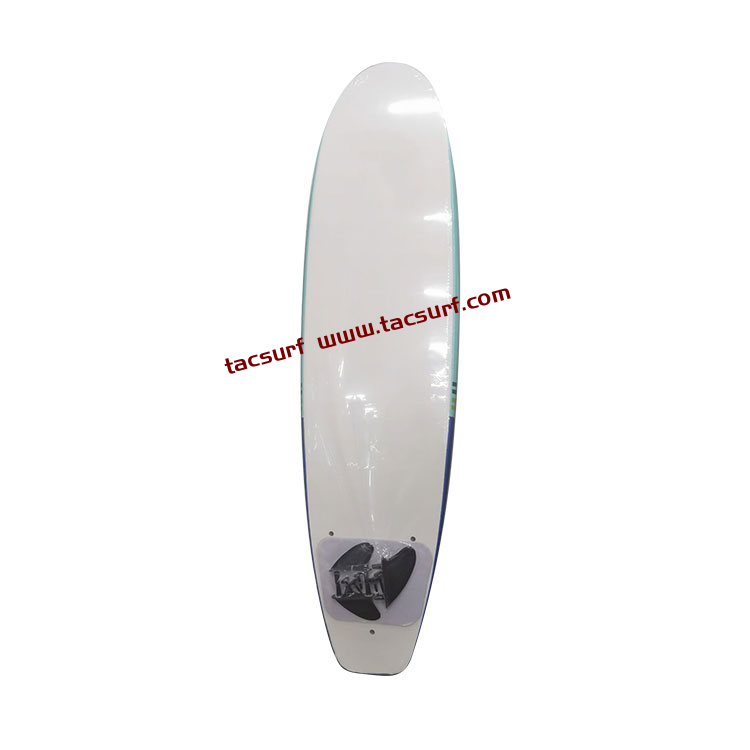

7ft Patchwork Foam Soft Board Funboard

Tacsurf Wholesale 7ft Patchwork Foam Soft Board Funboard with vacuum bag technology. According to design requirements and customized specification,We use 4mm IXPE with 8lb/12lb/15lb difference density top material,Vacuum bag technology softboard also can use 4mm EVA material on top deck.Mold size all adopt 22kgs/m3 EPS foam core,insert handle grip on top or bottom,install metal plug in EPS foam core.Fins can be done as customized.If you need do customized difference density EPS foam core for softboard,We also can do it.



This 7ft Patchwork Foam Soft Board Funboard quickly became the go-to beginner board for pre-teens and young teenage kids to learn on. The smaller size is easier for smaller kids to handle, while the wider funboard shape helps kids catch waves with ease, getting them stoked on surfing early.

For customized design,There are two kinds technology,Silk printing for simple design,Roller for complex design.

Silk Printing MOQ 100pcs/Size,Size and Color can be mixed.

Roller MOQ 400pcs/Design,Size can be mixed.

Size:	215*55*7.5cm
Top Material:	4mm IXPE (12lb)/4mm EVA
Core:	22kgs/m3 EPS foam core
Bottom:	65S White HDPE Slick Bottom
Constructure:	Two wooden stringers Two Layers 6oz fiberglass on foam top,one layer 6oz fiberglass on bottom
Technology:	Vacuum Bag Technology
Fins:	Three same size PU fins & 1+2 Plastic fins &Two Fins & FCS fins
Leash:	PU leash
Handle：	Customized
Design:	Customized
MOQ:	100pcs/Color
Size:	Can be mixed
FOB:	NingBo,China
Payment Terms:	30% Deposit,70%Balance after Telex Release BL

If you need do any customized shape & material & Design,we have CNC shape machine to do any customized size.Pls help send email to us.



Vacuum Bag Technology Soft Top Surfboard Mold Size detail



We have 7ft Patchwork Foam Soft Board Funboard mold size 4’11/5’0’’/5’5’’/5’6’’/5’10 fish/6’0’’/6’6’’/7’0’’/7’6’’/8’0’’/9’0

If you need do any other size,We also have CNC shape machine can do it.Pls help send email to us if require.

Softboard Mold Size

Size	Length(cm)	Width(cm)	Thickness(cm)	Carton Size	20GP	40HQ
4’11”	150	54	6.5	155*54*11cm	265pcs	690pcs
5′	153	51	6.5	153*52*11cm	280pcs	735pcs
5’5”	167	52	5	166*52*11cm	270pcs	680pcs
5’6”	168	52	7	168*55*11cm	245pcs	630pcs
5’10”Fish	176	54	7	177*55*11cm	235pcs	600pcs
6’0”(Round Nose)	183	54	7	183*58*11cm	220pcs	560pcs
6’0”（Point Nose）	183	51	7	184*52*11cm	240pcs	620pcs
6’6”	198	54	7	200*53*11cm	215pcs	560pcs
7′	215	55	7.5	217*56*11cm	190pcs	485pcs
7’6”	229	60	7.7	232*56*11cm	180pcs	455pcs
8′	245	56	8	247*56*12cm	150pcs	390pcs
9′	275	61	8	277*64*12cm	120pcs	300pcs
**This data is EPS foam core Mold size.Softboard size pls add 0.5-1cm.

Vacuum Bag Technology Soft Surfboard Material Colors



7ft Patchwork Foam Soft Board Funboard Constructure



7ft Patchwork Vacuum Bag Technology Softboard with durable constructure and exquisite technology.Mold Size Soft Surfboard constructure:

4’11’’/5’0’’/5’5’’/5’6’’/5’10’’fish/6’0’’/6’6’’/7’0’’ has two wooden stringers

7’6’’/8’0’’/9’0’’ has two wooden stringers and one fiberglass Rod

Two Layers 6oz fiberglass on foam top,one layer 6oz fiberglass on bottom



Soft Surfboard Configuration



General configuration: Softboard+PU Fins+Handle Grip (FCS Fins & PU leash need extra charge)



Three kinds PU Fins for choose:



Two Kinds FCS fins:



Silk Printing & Roller design



Package



Shrink Film+Big Bubble+Cardboard+Carton



7ft Patchwork Foam Soft Board Funboard workshop



Shipping







Customer service



We have professional design team to help realize customized design on board.

At the same time,our technicians with experienced communicate with customers at any time ,In order to gurantee each order can be perfect.

We have 24 hours on-line after-sales teams to ensure reply and deal with questions at any time.
